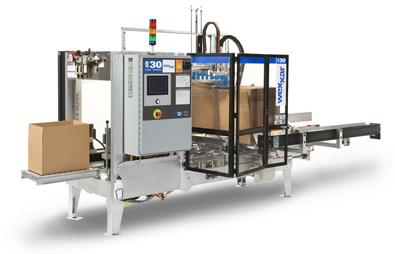

Wexxar WF-30 Case Erector

Description

The WF30 fully automatic case former / case erector overcomes the common variables involved in forming cases that are often associated with the quality of corrugated. It easily handles the common imperfections in corrugated that can disrupt the forming process, and this remote demand-controlled machine will effortlessly open and form your RSC, HSC or CSSC cases at 30 CPM.

Features

The WF30 automatic case former has re-invented the toolless set-up, offering simpler, “user obvious” features that mean a quick and easy case size adjustments for packaging lines. Box one is ready to run without the use of tools or guide-books. A color-coded, tactile guide offers a more efficient, friendly system for operators.

Case forming is handled by the Pin & Dome mechanical mechanism and the pin adjustments can be easily released and re-inserted into any different position quickly without having to completely unbolt the mechanism. A new case squaring system, ensures accurate forming by checking squareness throughout the entire forming process. The Tilt-out Tape Head (for the tape version), minimizes downtime with the quick and easy accessed bottom tape head, for fast tape changes.

The WF30 is available for pressure sensitive tape case sealers or hot melt glue forming.

• Pin & Dome: As flat case blank is injected into the two facing plates, the pins goes into the flutes and the dome pinches the corrugated tightly. The two plates then open to 90 degrees to perfectly square the case. Since no compressed air is used in this process, it greatly decreases contamination and is more durable than vacuum cups which can clog and wear.
• Safety & Ergonomic Features: Floor level tending reduces strain; every machine Wexxar builds is fully guarded from in-feed to out-feed, interlocked safety guarding throughout the machine; easily accessed control and assemblies; palm e-switches located on both sides.
• Dynamic Flap Folding: Wexxar case formers have a dynamic flap folding system. As long plow rails aren’t used, the overall length of the machine is significantly more compact.
• Compliant Drive Belt: Each of the two facing unidrive drive belts is mounted on a spring mechanism. This allows a constant pressure to be exerted on the case, despite normal variations in case width. Even heavy cases are handled carefully and with great control.
• Non-Contacting Sensors: Proximity sensors are able to have a much greater operating lifetime and don’t cause jams than contacting sensors.
• In-Line Operation: By keeping the intake and outflow of the machine in line with the rest of the line, aisles are kept free, safety is improved and space is saved.
• Simplicity of Construction: By planning through each step in the construction of the machine and its materials, Wexxar is able to greatly reduce potential problems.
• Small Footprint: Compact operations allows Wexxar’s machine to fit into virtually any application and production line.
• Integrated Controls: Connecting each machine in the full production line through common equipment and protocols reduces complexity and problems while increasing overall control.
• Tagout/Lockout: When a machine is locked out, it cannot be operated until all the safety features are in place.
• Paint-Free Construction: No paint: no contaminating flakes, no extra maintenance required.
• UL-Listed Electrical Panels: Wexxar meets or exceeds all standards, requirements and specifications
• NEMA Electrical Specifications: Wexxar meets or exceeds all standards, requirements and specifications
• Regional Service Available: Through Wexxar’s operating partnership with 10 other Pro Mach companies, there are factory trained service specialists available across North America.

Contact us for more information regarding Wexxar’s WF-30 S-Series with auto adjust features and enhanced speed and surge control!

Specifications

‘Speed: Maximum 30 cases per minute (CPM)
Size maximum: L: 24 x W: 17 x D: 16.5 Maximum E = 25
Size minimum (Smaller/Custom sizes available by request): L: 6 x W: 5 x D: 3.5 Minimum E = 6
Positive Case Squaring System: Lines up and squares the case during sealing, creating visually appealing case output.
Single Push Transport System: Combines linear bearing guides with a mechanically adjustable case pusher for case squaring.

• Dekka high performance tape head case closure system is standard
• Precision folded and sealed cases around the clock
• Positive case opening without vacuum easily accepts marginal quality corrugated board
• Large case feed magazine
• Corrosion-resistant, inline construction
• U.L. listed electrical panel
• Simple 10 minute size changeover
• Interlocked safety guarding
