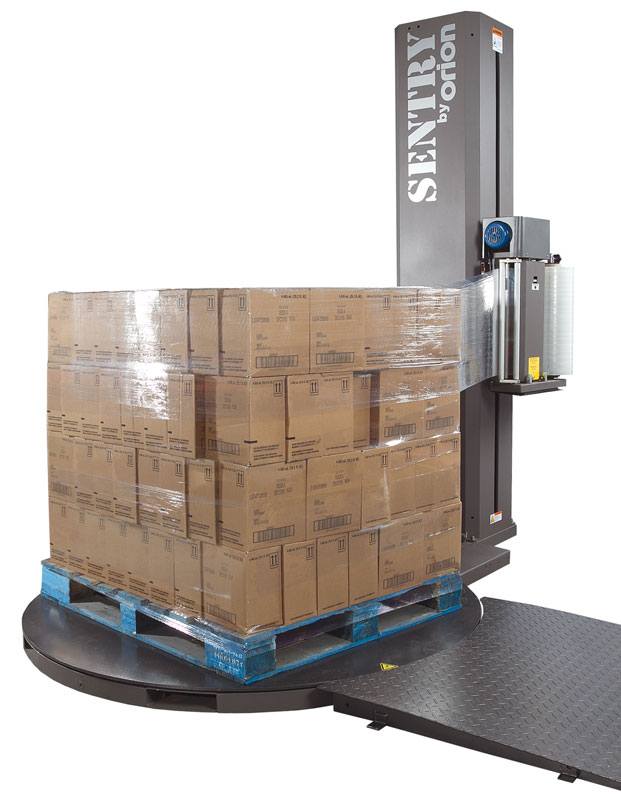

Replaced by Orion’s Sentry LP, the original Sentry by Orion gives you the economy and strength of powered prestretch film delivery at an entry level price. Don’t be fooled by lower priced stretch wrappers with mechanical tension film carriages which apply film at a much lower stretch level. This can not only waste stretch film but can lead to load failure in transit. The fact is that today’s modern stretch films are engineered to be elongated from 200% to 300% for maximum performance and economy.
Features
Check out Orion’s NEW Sentry LP which has replaced their original Sentry machine – click here!The Sentry comes with a 200% powered prestretch film carriage which helps you save on film costs and give you a superior holding force compared to hand wrapping or mechanical tension wrappers. The Sentry is built to give you year after year of dependable, trouble-free operation with steel construction, heavy-duty components and reliable electronics.
Eliminate the need for labor intensive, inefficient manual hand wrapping
Wraps pallet loads (52″ x 52″ x 80″ H max.) weighing up to 4,000 pounds
Optional tall mast available to wrap loads up to 96″ high

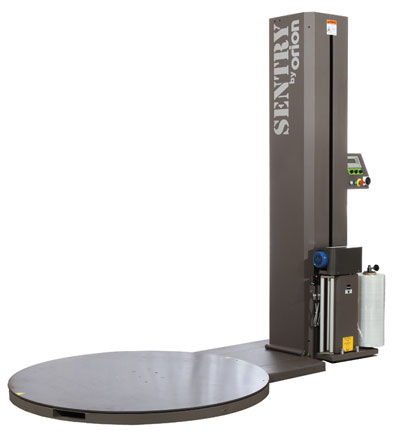

Variable turntable speed: maximum 9 RPM, 65 inch turntable
Adjustable Top and Bottom wrap count (1-9)
Variable speed carriage to apply more or less stretch film
Forklift portable design for easy machine transport

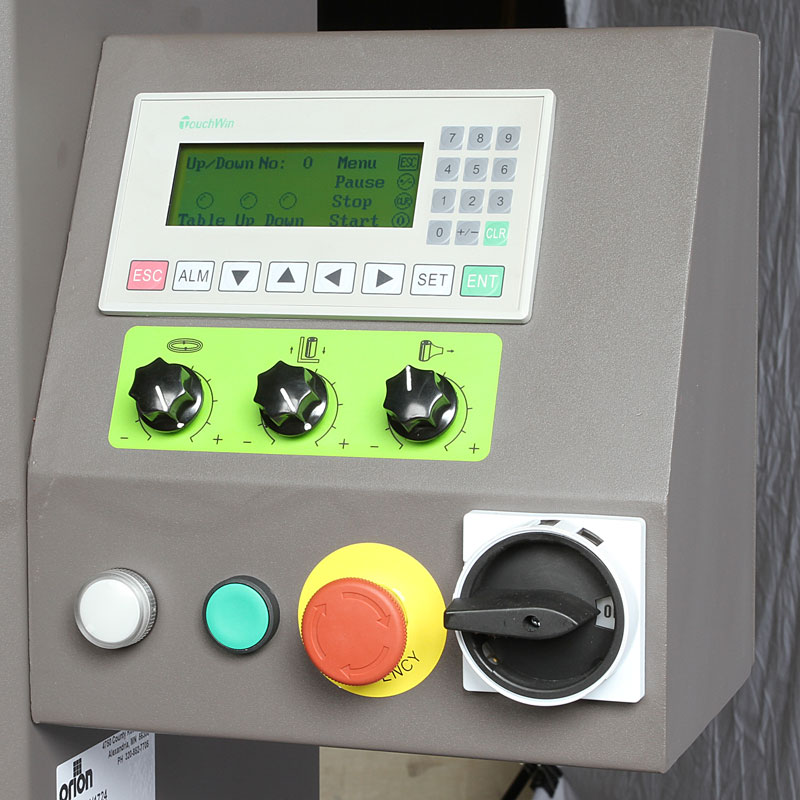

Easy to use control panel with multi-language display
Available loading ramp for pallet jack or walkie loading

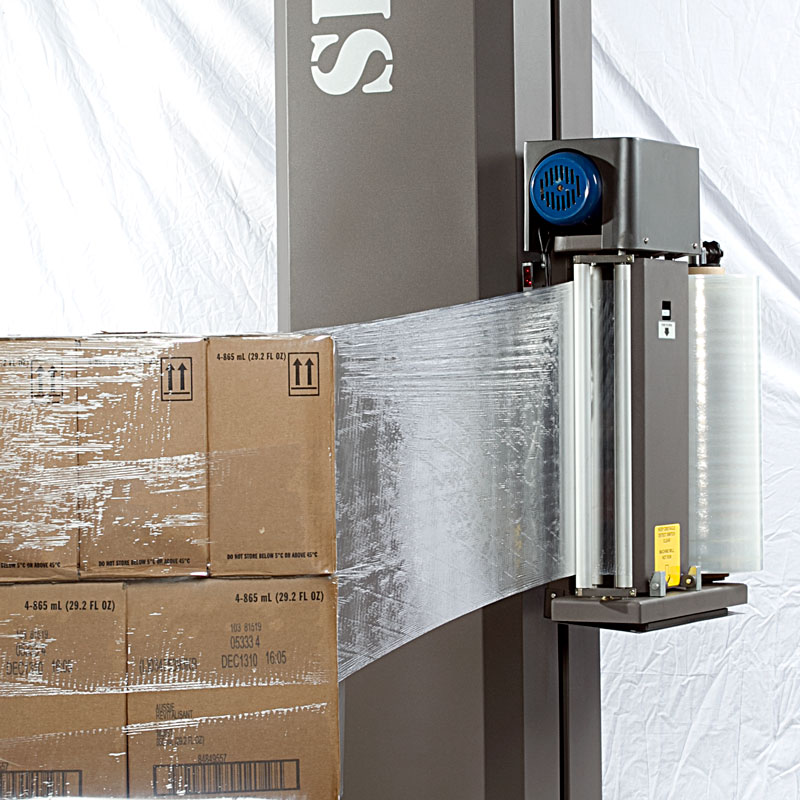

200% film prestretch to reduce film cost and increase film strength
Load height sensing photoeye stops carriage at top of each load
Rugged steel construction for long-term reliability
12-Point roller cam turntable support for reliable operation
Dual chain film carriage drive enclosed inside mast
Home position alignment stops turntable is same position each cycle

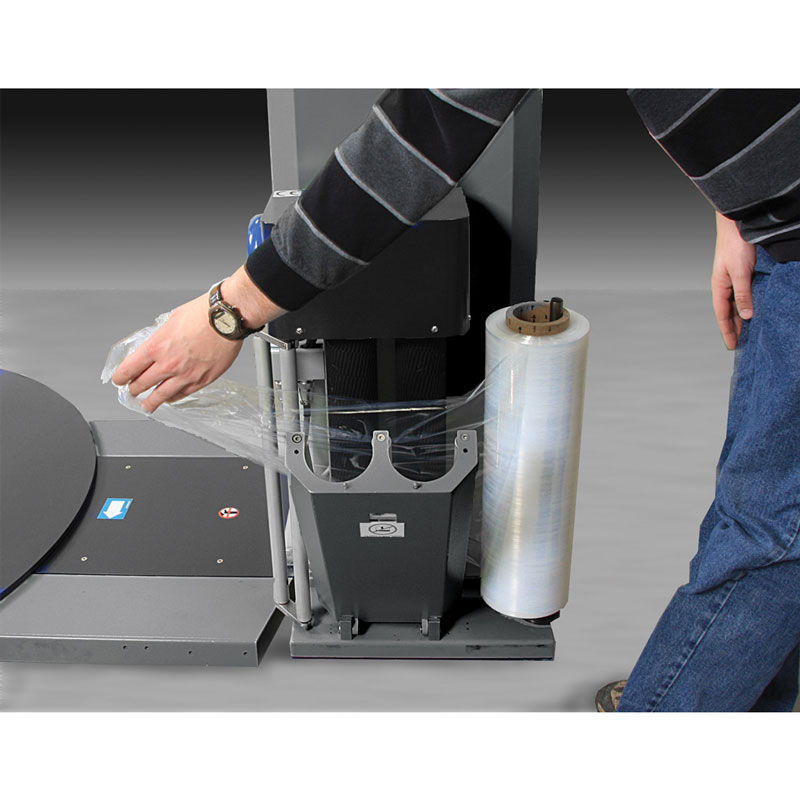

Powered prestretch film carriage is easy to load
Manual jog controls for turntable, film carriage
Settings can be password protected to prevent unauthorized access
2 Year Warranty
Here’s how to wrap a load on the Sentry:
Place load on turntable with forklift or pallet jack (ramp optional)
Secure film to load, press the start button
Load wrapped according to your programming
After load is wrapped, operator cuts film and secures film tail
Remove wrapped pallet load and the Sentry is ready for the next
Wrapping your loads by hand is hard work and can lead to repetitive motion injuries. It’s also a very inefficient way to unitize loads because most people hand wrapping can only stretch the film between 5% and 10%. The harder they pull, the more the film necks down and the more times they have to walk around the load. Now for under $6,300, you can have neat, professional looking loads that are wrapped with prestretched film for maximum load holding power. Ask your local Orion distributor to calculate your stretch film savings by switching to a Sentry by Orion today.
Specifications
‘Options:
An extended mast option is available for the Sentry by Orion. Allows wrapping of loads up to 89 inches tall.

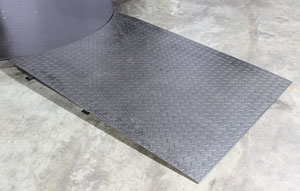

Ramp for manual pallet jack loading & unloading, 59 inches long x 41 inches wide. Bolts to base frame.
Orion Sentry
Model
Sentry
Description
Replaced by Orion’s Sentry LP, the original Sentry by Orion gives you the economy and strength of powered prestretch film delivery at an entry level price. Don’t be fooled by lower priced stretch wrappers with mechanical tension film carriages which apply film at a much lower stretch level. This can not only waste stretch film but can lead to load failure in transit. The fact is that today’s modern stretch films are engineered to be elongated from 200% to 300% for maximum performance and economy.
Features
Check out Orion’s NEW Sentry LP which has replaced their original Sentry machine – click here!The Sentry comes with a 200% powered prestretch film carriage which helps you save on film costs and give you a superior holding force compared to hand wrapping or mechanical tension wrappers. The Sentry is built to give you year after year of dependable, trouble-free operation with steel construction, heavy-duty components and reliable electronics.
Here’s how to wrap a load on the Sentry:
Wrapping your loads by hand is hard work and can lead to repetitive motion injuries. It’s also a very inefficient way to unitize loads because most people hand wrapping can only stretch the film between 5% and 10%. The harder they pull, the more the film necks down and the more times they have to walk around the load. Now for under $6,300, you can have neat, professional looking loads that are wrapped with prestretched film for maximum load holding power. Ask your local Orion distributor to calculate your stretch film savings by switching to a Sentry by Orion today.
Specifications
‘Options:
