Rotoplat is a turntable stretch wrapping machine (trans pallet versions available for all models). The many years of Robopac experience in designing technical solutions for the stretch wrapping industry have culminated in the ROTOPLAT line of durable, high performance products. Our requirements for high quality components, exacting specifications, quality workmanship and extensive testing lead to the production of the most reliable and safe turntable wrapping solutions on the market.
Features
‘The AETNA Robopac Rotoplat 707 has been discontinued and replaced by the Rotoplat 708 – view here! For a used Rotoplat 707 contact us for availability.
Turntable: The new turntable base has front and rear forklift portability to facilitate operations. The plate is spinning on heavy duty casters with sealed bearings. A chain and sprocket system ensure consistent and reliable turntable performances during rotation. The diamond pattern on the plate ensures better grip for any load avoiding slippage during the wrapping cycle.
Upgraded Control Panel featuring a STOP CYCLE push button –Control Panel Functions
Turntable rotation speed
Pre-stretch Ratio
Upward/Downward film carriage speed
Force to load control upward and downward
Bottom and Top wraps
Photoeye sensing delay
Wrapping Cycles and Custom Programs
Top sheet cycle (water proof)
Top hold down cycle
Reinforcement wraps
4 Programmable pre-sets
MastThe mast is made of cold folded steel and has a tubular inner structure in order to ensure maximum rigidity and resistance to any torsion or strain. A heavy-duty drive chain moves the film carriage upward and downward for a constant and accurate control of the wrapping process. The anti-fall device in case of emergency assures the maximum safety. Home PositionThe load always stops in the same position that was placed in before the wrapping. This greatly improves times and costs of the process. Plate’s smooth start and stop steps are controlled by VFD that provides consistently the same positioning of the load before and after the wrapping cycle. The gear and worm system makes it possible to keep the phase of the turntable even while positioning the load of the plate. PVS Film CarriageIndependent dual-drive pre-stretch roller carriage with pre-stretch ratio adjustment from 0-400%. Film deposit force onto the load can be adjusted on the panel and controlled by patented electronic device. “QLS” (quick load system) for fast film loading
Specifications
‘Rotoplat 707 – Turntable for packaging with stretch film Carriage: Two motors Power pre-stretch with force to load electronic control Machine Characteristics Plate Diameter: 65″ Turntable Rotation Speed: 4-15 rpm Forklifting (707): Front and Rear Power Supply Voltage: 120 Volt 1 Ph/60Hz Installed Power: 1.5 HP Phase Stopping: STD Pre-Stretch Ratio: 100-400% Soft Start: STD
Characteristics of product to be wrapped Maximum Dimensions (LxW): 48″x48″ Maximum Useful Height: 86″ Maximum Load Weight (707 PVS): 4400lbs Film Roll Characteristics Max. External Diameter (D): 12″ Film Roll Height (h): 20″ (30″ Option) Film Thickness: 70 – 140 gauge Internal Diameter (d): 3″ Maximum Weight: 44lbs

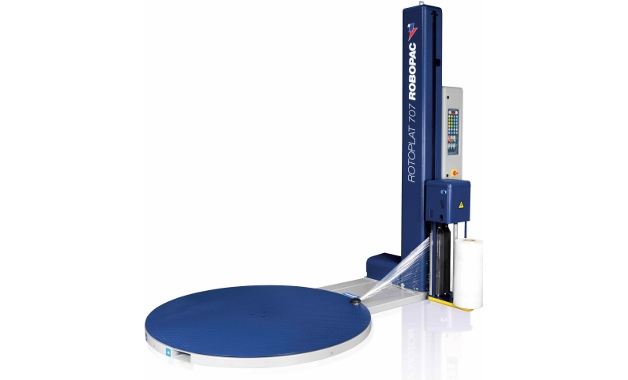

AETNA/Robopac Rotoplat 707
Model
Rotoplat 707
Description
Rotoplat is a turntable stretch wrapping machine (trans pallet versions available for all models). The many years of Robopac experience in designing technical solutions for the stretch wrapping industry have culminated in the ROTOPLAT line of durable, high performance products. Our requirements for high quality components, exacting specifications, quality workmanship and extensive testing lead to the production of the most reliable and safe turntable wrapping solutions on the market.
Features
‘The AETNA Robopac Rotoplat 707 has been discontinued and replaced by the Rotoplat 708 – view here! For a used Rotoplat 707 contact us for availability.
Turntable: The new turntable base has front and rear forklift portability to facilitate operations. The plate is spinning on heavy duty casters with sealed bearings. A chain and sprocket system ensure consistent and reliable turntable performances during rotation. The diamond pattern on the plate ensures better grip for any load avoiding slippage during the wrapping cycle.
Upgraded Control Panel featuring a STOP CYCLE push button –Control Panel Functions
Wrapping Cycles and Custom Programs
MastThe mast is made of cold folded steel and has a tubular inner structure in order to ensure maximum rigidity and resistance to any torsion or strain. A heavy-duty drive chain moves the film carriage upward and downward for a constant and accurate control of the wrapping process. The anti-fall device in case of emergency assures the maximum safety.
Home PositionThe load always stops in the same position that was placed in before the wrapping. This greatly improves times and costs of the process. Plate’s smooth start and stop steps are controlled by VFD that provides consistently the same positioning of the load before and after the wrapping cycle. The gear and worm system makes it possible to keep the phase of the turntable even while positioning the load of the plate.
PVS Film CarriageIndependent dual-drive pre-stretch roller carriage with pre-stretch ratio adjustment from 0-400%. Film deposit force onto the load can be adjusted on the panel and controlled by patented electronic device. “QLS” (quick load system) for fast film loading
Specifications
‘Rotoplat 707 – Turntable for packaging with stretch film
Carriage: Two motors Power pre-stretch with force to load electronic control
Machine Characteristics
Plate Diameter: 65″
Turntable Rotation Speed: 4-15 rpm
Forklifting (707): Front and Rear
Power Supply Voltage: 120 Volt 1 Ph/60Hz
Installed Power: 1.5 HP
Phase Stopping: STD
Pre-Stretch Ratio: 100-400%
Soft Start: STD
Characteristics of product to be wrapped
Maximum Dimensions (LxW): 48″x48″
Maximum Useful Height: 86″
Maximum Load Weight (707 PVS): 4400lbs
Film Roll Characteristics
Max. External Diameter (D): 12″
Film Roll Height (h): 20″ (30″ Option)
Film Thickness: 70 – 140 gauge
Internal Diameter (d): 3″
Maximum Weight: 44lbs
