The Ecoplat Plus is designed for dynamic, rapidly growing companies that require maximum priority and flexibility stretch wrapping operations with a limited investment. The Ecoplat Plus machine is now available featuring different wrapping functions and film delivery system. In particular, the Ecoplat Plus is equipped with a powered pre-stretch film carriage with fixed pre-stretch and adjustable force to load. Like all Robopac machines, the Ecoplat Plus is built according to the highest quality and safety standards.
Attention to the production process and the use of high – performance materials place this product at the top of their category.
Features
‘Turntable
Heavy duty caster with sealed bearings
A chain and sprocket system ensures consistent and reliable turntable performances during rotation
Mast
Made of cold folded steel
Tubular inner structure to ensure maximum rigidity and resistance to any torsion or strain
Heavy duty drive chain moves the fil carriage upward and downward for a constant and accurate control of the wrapping process
Anti-fail device in case of emergency assures the maximum safety
Home Position
The load always stops in the same position that it was placed in before the wrapping
Plates smooth start and stop steps controlled by VFD
Gear and worm system makes it possible to keep the phase of the turntable even while positioning the load on the plate
Specifications
Machine Characteristics
Plate Diameter: 65″ Turntable Rotation Speed: 4-10 rpm Forklifting (HYBRID): Front and Rear Power Supply Voltage: 120 Volt 1 Ph/60 Hz Installed Power: 1.5 HP Phase Stopping: STD Soft Start: STD Characteristics of the product to be wrapped Maximum Dimensions (LxW): 48″x48″ Maximum Useful Height: 86″ Maximum Load Weight (HYBRID): 4400lbs Film Roll Characteristics Max. External Diameter (D): 12″ Film Roll Height (h): 20″ Film Thickness: 70 + 140 gauge Internal Diameter (d): 3″ Max. Weight: 44 lbs Ecoplat Plus: Manually interchangeable fixed gears powered pre-stretch

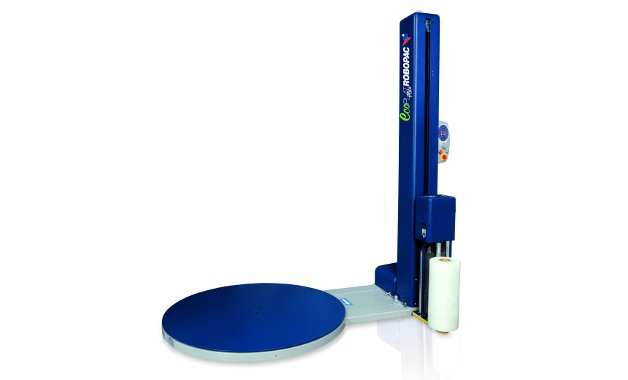

AETNA/Robopac Ecoplat Plus
Model
Ecoplat Plus
Description
The Ecoplat Plus is designed for dynamic, rapidly growing companies that require maximum priority and flexibility stretch wrapping operations with a limited investment. The Ecoplat Plus machine is now available featuring different wrapping functions and film delivery system. In particular, the Ecoplat Plus is equipped with a powered pre-stretch film carriage with fixed pre-stretch and adjustable force to load. Like all Robopac machines, the Ecoplat Plus is built according to the highest quality and safety standards.
Attention to the production process and the use of high – performance materials place this product at the top of their category.
Features
‘Turntable
Mast
Home Position
Specifications
Machine Characteristics
Plate Diameter: 65″
Turntable Rotation Speed: 4-10 rpm
Forklifting (HYBRID): Front and Rear
Power Supply Voltage: 120 Volt 1 Ph/60 Hz
Installed Power: 1.5 HP
Phase Stopping: STD
Soft Start: STD
Characteristics of the product to be wrapped
Maximum Dimensions (LxW): 48″x48″
Maximum Useful Height: 86″
Maximum Load Weight (HYBRID): 4400lbs
Film Roll Characteristics
Max. External Diameter (D): 12″
Film Roll Height (h): 20″
Film Thickness: 70 + 140 gauge
Internal Diameter (d): 3″
Max. Weight: 44 lbs
Ecoplat Plus: Manually interchangeable fixed gears powered pre-stretch
