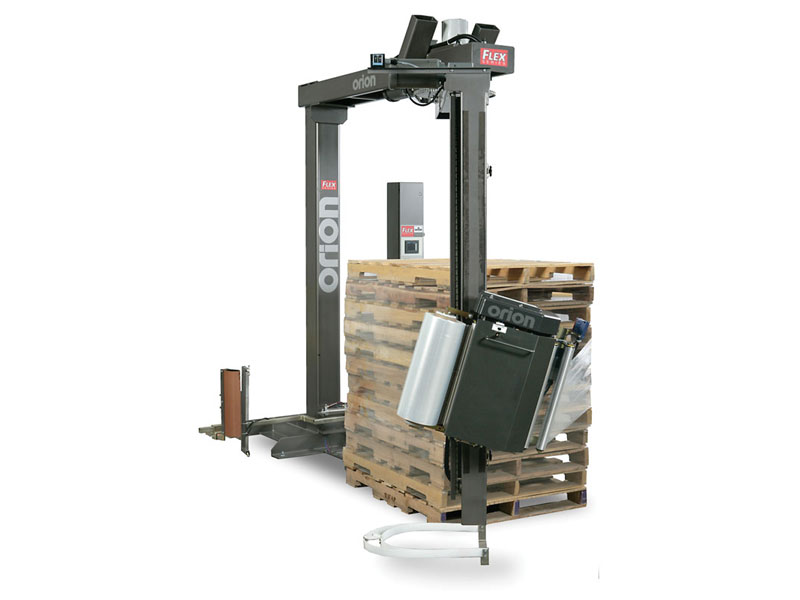

The RTA semi-automatic stretch wrapping system is the fastest way to boost your end-of-line packaging efficiency by eliminating the need for operators to manually attach the film tail to the load, then cut and secure the film tail at the end of the cycle. The RTA stretch wrapper automatically performs these functions so your operators simply place the load, pull a handing lanyard to start the cycle, and attend to other duties. When they return the load is securely wrapped and ready to be removed.
Features
The Flex RTA Series includes an automatic film tail with attach, cut, and press capabilities. With no maximum load weight capacity, your product needs are easily met. there is a floor mounted control panel for flexibility along with the structural steel construction for durability.
A start cycle with hanging lanyard comes standard on the Flex RTA Series. A tower mounted obstacle sensing system is available for a more controlled, safe environment. And for precision, there is a precision ring bearing drive system available.
16 RPM Variable Speed Tower
Automatic Film Tail Attach/Cut/Press
Start Cycle With Hanging Lanyard
No Maximum Load Weight Capacity
Floor Mounted Control Panel for Flexibility
Precision Ring Bearing Drive System
AC/VFD Motors for Reduced Maintenance
Structural Steel Construction for Durability
Heavy Duty Chain & Sprocket Drive
Tower Mounted Obstacle Sensing System
Specifications
Production Speed: Up to 40-50 loads/hour Maximum Load Size: 48″W x 48″L x 80″H (68″ Diagonal)
InstaThread Film Delivery System: Film Roll: 20″ Standard / 30″ Optional / 10″ Diameter Standard Pre-Stretch Ratio: 260% (higher available) Additional Features: Wrap to within 3″ of floor, automatic load height sensing photoeye, Automatic film force-to load control Shipping Weight: 2,500+ lbs (varies with options) Warranty: 4 Years on all major components5 years on structural frame Utilities: 115/1/60, 20 AMP electrical service80 PSI @ CFM compressed air
Orion Flex RTA
Model
Flex RTA
Description
The RTA semi-automatic stretch wrapping system is the fastest way to boost your end-of-line packaging efficiency by eliminating the need for operators to manually attach the film tail to the load, then cut and secure the film tail at the end of the cycle. The RTA stretch wrapper automatically performs these functions so your operators simply place the load, pull a handing lanyard to start the cycle, and attend to other duties. When they return the load is securely wrapped and ready to be removed.
Features
The Flex RTA Series includes an automatic film tail with attach, cut, and press capabilities. With no maximum load weight capacity, your product needs are easily met. there is a floor mounted control panel for flexibility along with the structural steel construction for durability.
A start cycle with hanging lanyard comes standard on the Flex RTA Series. A tower mounted obstacle sensing system is available for a more controlled, safe environment. And for precision, there is a precision ring bearing drive system available.
Specifications
Production Speed: Up to 40-50 loads/hour
Maximum Load Size: 48″W x 48″L x 80″H (68″ Diagonal)
Film Roll: 20″ Standard / 30″ Optional / 10″ Diameter
Standard Pre-Stretch Ratio: 260% (higher available)
Additional Features: Wrap to within 3″ of floor, automatic load height sensing photoeye, Automatic film force-to load control
Shipping Weight: 2,500+ lbs (varies with options)
Warranty: 4 Years on all major components5 years on structural frame
Utilities: 115/1/60, 20 AMP electrical service80 PSI @ CFM compressed air
