Clamco 6800CS Side Sealer

Description

The Clamco 6800CS is an economical intermittent motion automatic side seal shrink wrapper. Compared to traditional automatic L-bar sealers, the 6800CS side sealer offers the advantage of being able to pack products of any length and at a high rate. The 6800CS side sealer wraps up to 4200 packs per hour and works with polyolefin or polyethylene center folded shrink film.

Features

‘Side Sealer User Benefits:

• Package speed up to 70 per minute for a high production output
• Easy to navigate interface for operators of most skill levels
• Display of key packing statistics, including production rate and efficiency
• Automatic adjustment of cross seal bar opening based on product height increases wrapping speed

Side Sealer Operating Benefits:

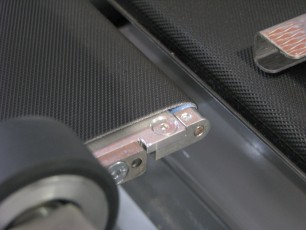

• Closing conveyor for smooth product transfer
• Continual monitoring of product length to detect packing errors
• Rounded cross seal bar decreases film breakage
• PTFE-coated side seal blade works with most shrink films (up to 120 gauge polyolefin)
• Film-economizer wheels reduce scrap and improve final package appearance

Side Sealer Set-Up Benefits:

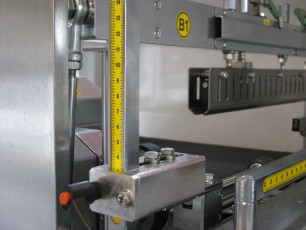

• Automatic seal centering on both the side seal and the cross seal, for a clean looking package
• Automatic product length detection allows individual or multiple products to be wrapped
• Quick changeover and 20 program memory allows for product set up in less than five minutes
• Low film cradle with inverted head for easy film loading and threading

Side Sealer Safety Benefits:

• Fully enclosed guarding ensures operator safety
• Smooth and quiet operation reduces plant noise
• Compliance with CE regulations ensures improved safety and design

Specifications

‘Conveyor Speed: 25-95 ft/min
Production Capacity: up to 70 cycles/minute
Cross Seal Bar Width: 19.75 inches
Max Product Width: 15.75 inches
Max Product Height: 7.85 inches
Max Product Length: unlimited
Max Film Width: 23.5 inches
Max Film Roll Diameter: 13.75 inches
Electrical Requirements: 220 Volt, 7 Amps, 3 Phase
Air Requirement: 90 psi
Shipping Weight: 1,800 lbs
Machine Size: 86″ L x 61″ D x 61″ H
Options:

• Polyethylene cross seal bar to use 0.6 3 mil gauge polyethylene film
• Stainless steel frame for applications in the food industry
• Print registration for pre-printed film
• Safety photocell to ensure cross seal bar does not make contact with product
