Description
Simple and expandable. Thats the foundation of our I-Mark line of large character ink jet printers, and the SX32e is the benchmark for the industry. Matthews designed the SX32e to be a compact unit that is easily mounted and simple to start-up, with a simple and intuitive interface.
The SX32e controller is configured with Matthews 8000+ Series or Standard Series printheads, which are known world-wide for their reliable and rugged design, as well as cost-effective performance. With the various ink options available, the application solutions are limitless.
Features
- Icon based user interface
- Fast and easy to learn and operate
- Print on porous or non-porous surfaces
- Choice of many printheads operated from the same control module
Control Unit:
- Control unit with built-in keyboard. Serial port RS-232 for connection to PC. IP class 42
- Message Storage: 200 messages, 500 text strings within all messages. 4000 column capacity, 3 user text (quick access for editing), time codes, clocks, bar codes, and graphics
- Electrical: 90-264 V, 50-60 Hz auto-adjusting
- Dimensions and Weight (LxWxH): 11.2″ x 9.8″ x 4.9″ (286 x 251 x 126 mm), 5.5lbs (2.5kg)
- Display: 1/4 VGA 128 x 64 pixel graphical display and keyboard, monochrome with back-lit display
- Operating Environment: Temperature: 32-113F (0-45C) / Humidity: 10-95% non-condensing
Communications:
- Serial Interface: RS232 Code: 7 or 8 bit with 1 or 2 stopbits
- Baud Rate: 1,200 – 19,200, Xon/Xoff, CTS/RTS
Ink Options:
- Fast dry, pigmented, dye and water-based inks for porous and non-porous surfaces
- Black, blue, green, red, yellow, white, brown, purple, orange, and many more
- 1/4 USG (1 liter), 1 USG (4 liters), 5 USG (19 liters), 55 USG (208 liters)
Languages:
- English, Swedish, Spanish, German, Italian, Dutch, Czech, Polish, Turkish, French, Romanian, Russian, Japanese, Chinese, Cyrillic, Greek, Arabic

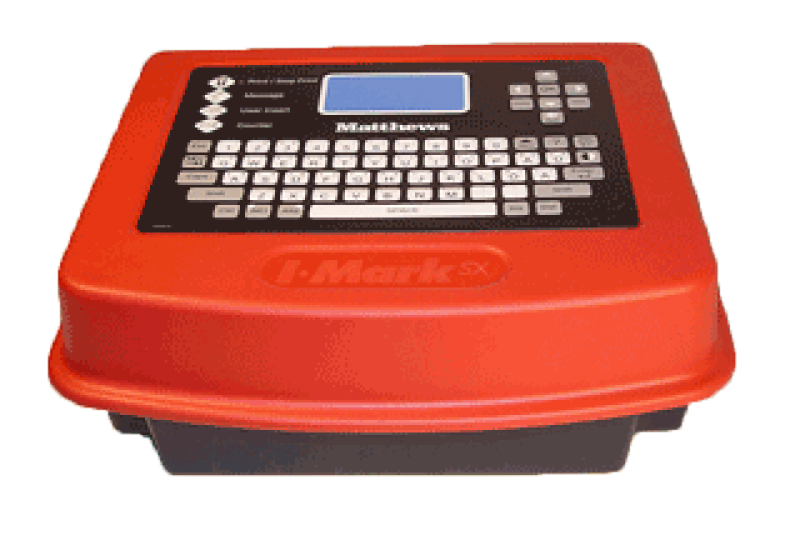

Matthews Marking SX32e Controller
