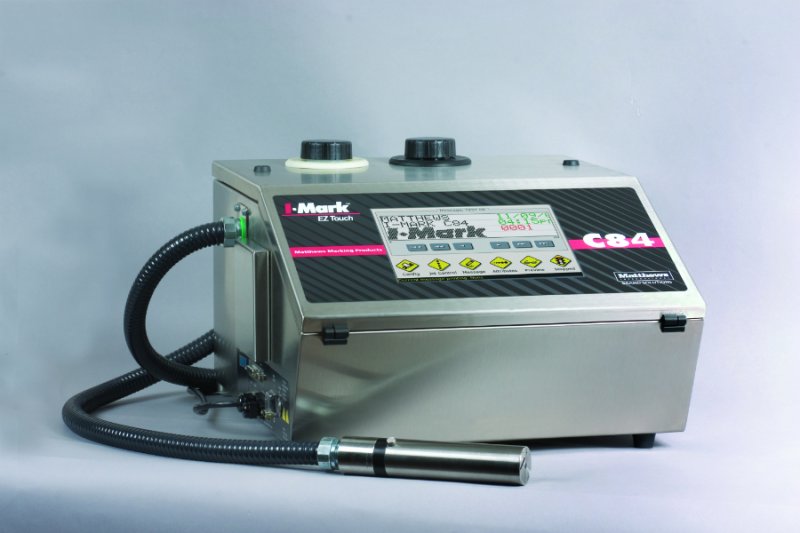

Matthews Marking C84+
Model
C84+
Description
The I-Mark C84+ provides fast, reliable, small character coding of expiration dates, batch codes, logos, and barcodes onto food, beverage, and pharmaceutical packaging, in addition to a variety of industrial applications
on plastics, paper, and metals. Combining ease of use with high performance and flexibility, the controllers 10.4 color touchscreen simplifies operation with an icon-based, graphical display. Ensuring trouble-free viscosity control and consistent print quality, the C84+ temperature, drop speed, and ink
pressure settings are automatically managed internally through a continuous diagnostic process. The patent pending, self-cleaning print head protects all internal electronics with a hermetically sealed enclosure featuring
a rugged, in-line nozzle design. Even shutting down this system is easier. Simply press a button and the built in intelligence enables an automatic-flush function that ensures your printhead is thoroughly cleaned and powered off. With one of the most efficient solvent consumption systems in the industry, the C84+ provides extremely low operating costs.
Features
General Performance:
Operator Interface:
Communications and Networks:
Print Features:
Specifications
‘Lines of Print: Up to 4 lines
5 lines possible – contact us
Min. Character Size: 0.05″ (1.25mm)
Max Character Size: .61″ (15.6mm)
Max Speed: 1050 ft/min
Optimal Print Distance: .39″ (10mm)
Orientation Mounting: All Directions
Printhead Dimensions: 9.25″L x 1.654″D
(235 mm x 42 mm)
Enclosure Dimensions: 23.14″L x 19.55″W x 13.01″H
(588 x 497 x 331 mm)
Total Weight: 58lbs (27 kg)
6.56′ or 13.12 print head conduits
(2 or 4 meter)
Electrical: 100 – 250 VAC, 50/60 Hz
Operating Temperature: 41 – 104 degrees F (5 – 40 degrees C)
Humidity: 10-95% non-condensing
Nema 12 and IP55 enclosure rating
Bench mounting
Languages: English, Italian, French, Russian, Turkish, Spanish, German, Dutch, Swedish. Keyboard: English & Russian
Options:
