Description

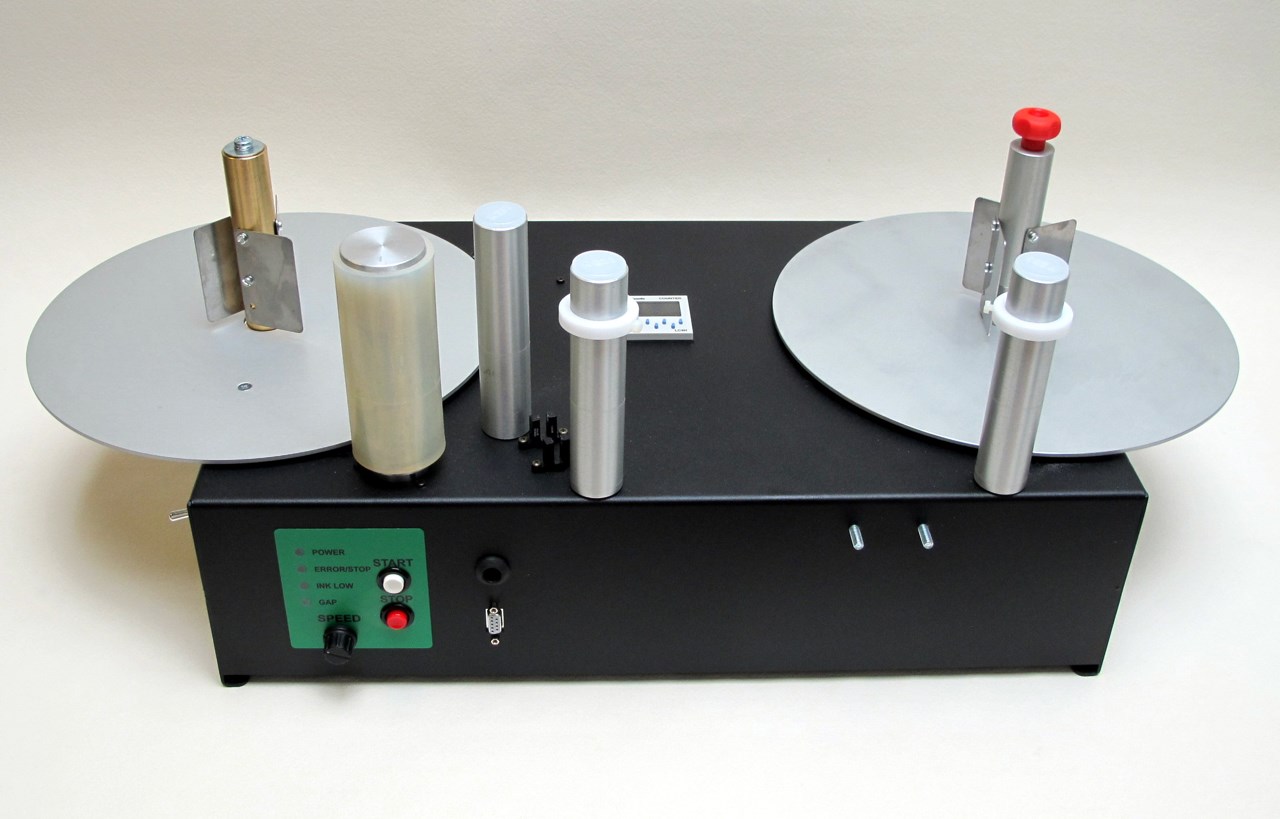

The PM-300 Reel-to-Reel Printer Mechanism from LABELMATE. At speeds up to 235cm/sec, you can conveniently and economically print or overprint labels using your preferred inkjet head. With full status indicators and control features, the PM-300 is an ideal table top platform for OEM applications that use an ink-jet head. When not used as a printer, the PM-300 can be used as a reel-to-reel Counter Rewinder. The built-in encoder has a resolution of 0,041mm.The PM-300-LS will print a 28cm diameter roll (425 meters) of labels in less than 7 minutes; the PM-300-HS will print the same roll in less than 5 minutes. The model choice is dictated by the performance of the inkjet head being used.
Features
Designed for all-day, every-day use, the PM-300 Reel-to-Reel Printer Mechanism is backed by LABELMATEs famous 3-Year Parts and Labour Limited Warranty . (The Warranty Period for included Power Supplies is 1-Year).
- ENC: Built-in encoder with resolution of 0,041mm.
- Output: Square waves: 0-15V.
- Maximum roll diameter: 300mm.
- Max. roll weight: 6kg.
- Label width: up to 125mm.
- Speeds:
- LS-Version: Max. 150cm/sec. For a rollof 28cm diameter and a core of 76mm.
- E.q.:7 min. for a roll of 28cm diameter with a 76mm core at full speed. Average speed: 100cm/sec.
- HS-Version: Max. 235cm/sec. For a roll of 28cmdiameter and a core of 76mm.
- E.g.: 4,5 min. for a roll of 28cm diameter with a 76mm core at full speed. Average speed: 150cm/sec.
- Rugged Construction
- Secured DB-9 Print Head Connector.
- Adjustable Label Guide.
- 220-240V 50-60Hz AC Input.
- Label sensor: Open collector output.
Specifications
- PC 2: Optional 6-digit pre-set counter.
- PC-3: Dual function preset counter. Allows to counts labels or show instantaneous web speed.
- HSA-BC: Mounting bracket and cable for HSA.
- CUST.: Customised version.
