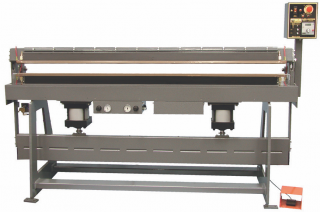

This industrial line of high pressure pneumatically-operated thermal impulse sealers and trim sealers are designed for demanding sealing applications of thick or high temperature materials. Generally used in manually fed packaging or fabricating applications but can also be utilized in conjunction with more automated machinery. The Vertrod PS impulse bar sealer is capable of making hermetic seals with temperatures ranging from 200°F to 650°F available. Open back construction allows the user to operate the machine from the front or rear of the sealer as well as providing pass-through ability for an un-interrupted flow of film. The Vertrod PS employs PACs state of the art solid-state control circuitry along with an improved safety system.
Features
The Vertrod PS sealer is available in seal lengths ranging from 36″ to 120″ . The PS comes with a variety of standard features and options, contact us for more information and details on custom applications.
The Vertrod PS impulse sealer is made in the USA and includes a 3 year limited warranty.
Seal Lengths: 36″, 48″, 60″, 72″, 84″, 96″, 108″, 120″
Seal Width: 1/4″
Single side heater bar with opposing pressure bar (bottom jaw heated)
Time-based thermal impulse sealing system
Independent Seal and Cool timers from 0 to 3.75 seconds (.25 second increments)
Open-back feed-through style with 3″ jaw opening
Incrementally adjustable top jaw for precise pressure alignment along sealing length
Welded structural steel frame construction with leveling pads that allow for anchoring machine
Pneumatic low-pressure jaw close safety system with release if obstruction is detected
Safety switch indication lights for precise, easy positioning of heat/high pressure engagement
Foot pedal cycle activation
Air requirement (min): 100 psi
Electrical requirement: 115V/230V (dependent on model and options)
Specifications
Options:
Wider seal widths: 3/8″, 1/2″
Dual Seals (parallel): 2 x 1/8″, 2 x 1/4″
Bi-active jaws (Top and bottom heated seal bars)
Jaw Selector Switch (Bi-Active or Top Heat)
Heater Bar on top, lower pressure bar
Hot Wire Trim Seal (Beaded trim seal)
Cold Cut Wire Trim
Water Cool ready heater bar
Stainless steel adjustable work shelf
Suretemp temperature controller with digital readout (up to 350F)
