The Vertrod PCAN pneumatic cantilever sealer is an industrial grade thermal impulse heat sealer for applications that require unobstructed access to the sealing jaws.
With the optional air expeller product volume can be reduced by means of compression. The air expeller compresses the product while forcing air out of the package, just prior to the sealing cycle. This method is faster than vacuum packaging to reduce product volume while also maintaining a consistent, uniform package shape.
Features
A Bagmaster bag opener used in conjunction with the optional extended product support table will allow a single operator to load product and run the compression / sealing cycle in a single step.
Some typical applications include packaging foam products, textiles, and other bulky flexible products. The Vertrod PCAN is built in three frame sizes with seal lengths ranging from 14″-36″ and a variety of sealing jaw configurations.
The Vertrod PCAN pneumatic cantilever sealer is made in the USA and includes a 3 year limited warranty.
Seal Length: 14″, 20″, 24″, 30″, 36″
Seal width: 1/4″
Single side heater bar with opposing pressure bar (bottom jaw heated)
Time-based thermal impulse sealing system
Independent Seal and Cool timers from 0 to 3.75 seconds (.25 second increments)
Welded steel frame construction with powder coat finish
Adjustable height sealing head
Pneumatic low-pressure jaw close safety system with release if obstruction is detected.
Foot pedal activation
Air requirement (min): 100 psi
Electrical requirement: 115V
Specifications
Options:

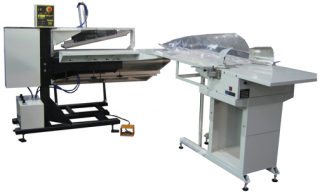

Air Expeller assembly for compression of product and evacuation of air
Large product clearance for air expeller
Extended product support table
Wider seal widths: 3/8″, 1/2″
Bi-active jaws (top and bottom heated bars)
Hot Wire Trim (beaded trim seal)
Cold Cut Wire Trim
Water Cool ready heater bar
Suretemp temperature controller with digital readout (up to 350F)
Vertrod PCAN Pneumatic Cantilever Sealer
Model
PCAN
Description
The Vertrod PCAN pneumatic cantilever sealer is an industrial grade thermal impulse heat sealer for applications that require unobstructed access to the sealing jaws.
With the optional air expeller product volume can be reduced by means of compression. The air expeller compresses the product while forcing air out of the package, just prior to the sealing cycle. This method is faster than vacuum packaging to reduce product volume while also maintaining a consistent, uniform package shape.
Features
A Bagmaster bag opener used in conjunction with the optional extended product support table will allow a single operator to load product and run the compression / sealing cycle in a single step.
Some typical applications include packaging foam products, textiles, and other bulky flexible products. The Vertrod PCAN is built in three frame sizes with seal lengths ranging from 14″-36″ and a variety of sealing jaw configurations.
The Vertrod PCAN pneumatic cantilever sealer is made in the USA and includes a 3 year limited warranty.
Specifications
Options:
