3M-Matic Case Sealer 800ab3 with 3M AccuGlide 3 Taping Head is an adjustable side belt drive case sealer. Bottom seal only at rates up to 40 cases/minute, using tape widths from 48 mm to 72 mm wide.
Features
Twin gear drive motors for heavy-duty reliability.
Spring-loaded side drives to center cases. Inclined rollers at in-feed help keep case down on conveyor bed.
Rugged construction with 16-gauge welded steel frame and epoxy paint finish.
Seals case lengths of 6 inches and up / width 5.5″ – 21.5″ / height 4.75 inch and up
Specifications
Applications: Packing product in batches Brand: 3M-Matic Color: Gray Drive System: Side Belt Frame Material: Epoxy powder coated steel Industries: Paper, Food and Beverage, Medical, General Industrial, MRO, Print Machine Type: Uniform sized boxes Maximum Box Weight: 85 lbs Maximum Box Width: 21.5 inches Minimum Box Height: 4.75 inches Minimum Box Length: 6 inches Minimum Box Width: 5.5 inches Operation: Operator folds flaps Product Form: Each Tape Width: 3 inches Tape Width (metric): 72 mm

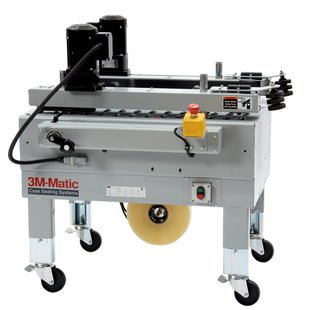

3M-Matic 800ab3 Case Sealer with 3M AccuGlide 3 Taping Head
Model
800ab3
Description
3M-Matic Case Sealer 800ab3 with 3M AccuGlide 3 Taping Head is an adjustable side belt drive case sealer. Bottom seal only at rates up to 40 cases/minute, using tape widths from 48 mm to 72 mm wide.
Features
Specifications
Applications: Packing product in batches
Brand: 3M-Matic
Color: Gray
Drive System: Side Belt
Frame Material: Epoxy powder coated steel
Industries: Paper, Food and Beverage, Medical, General Industrial, MRO, Print
Machine Type: Uniform sized boxes
Maximum Box Weight: 85 lbs
Maximum Box Width: 21.5 inches
Minimum Box Height: 4.75 inches
Minimum Box Length: 6 inches
Minimum Box Width: 5.5 inches
Operation: Operator folds flaps
Product Form: Each
Tape Width: 3 inches
Tape Width (metric): 72 mm
